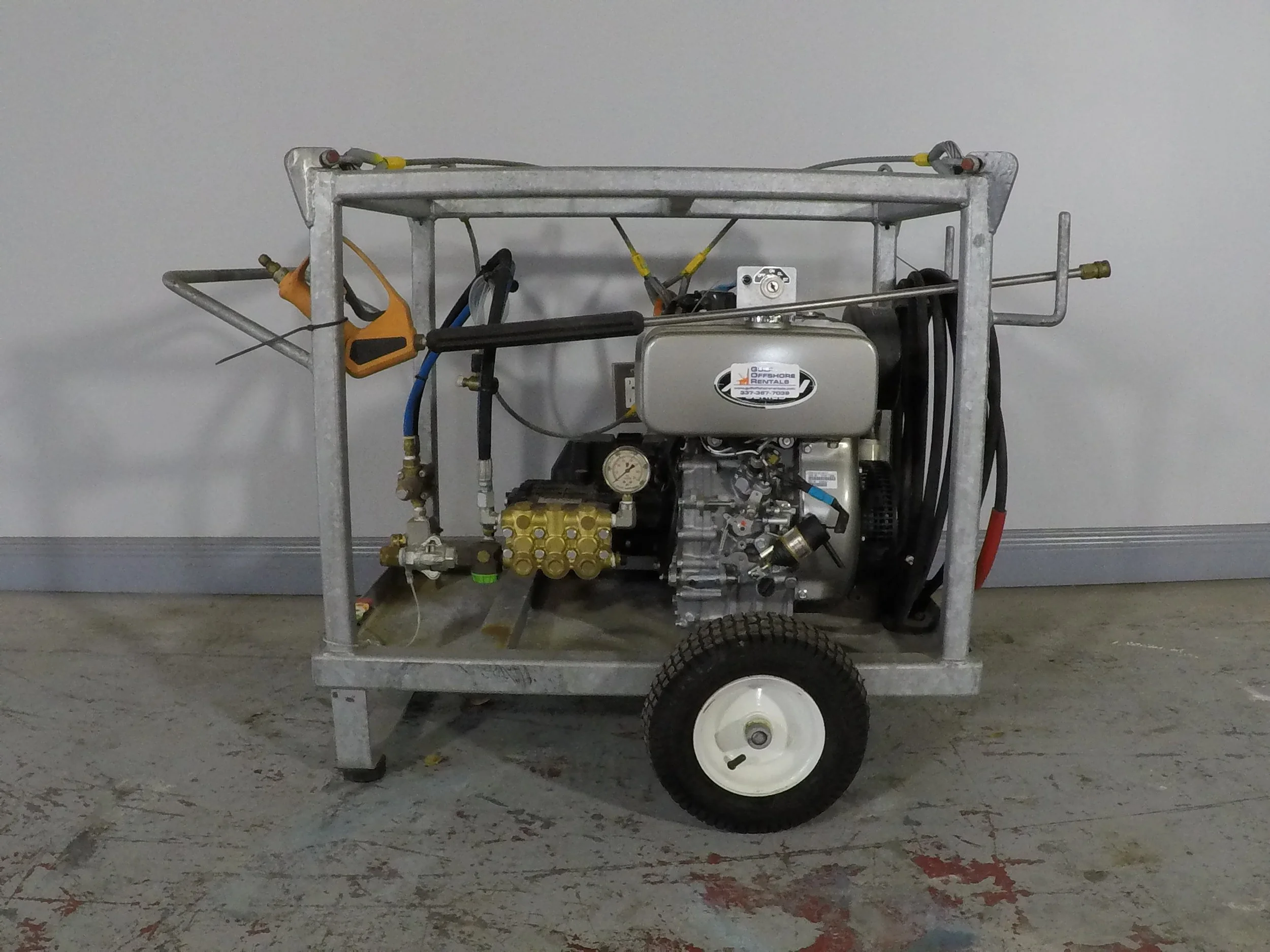

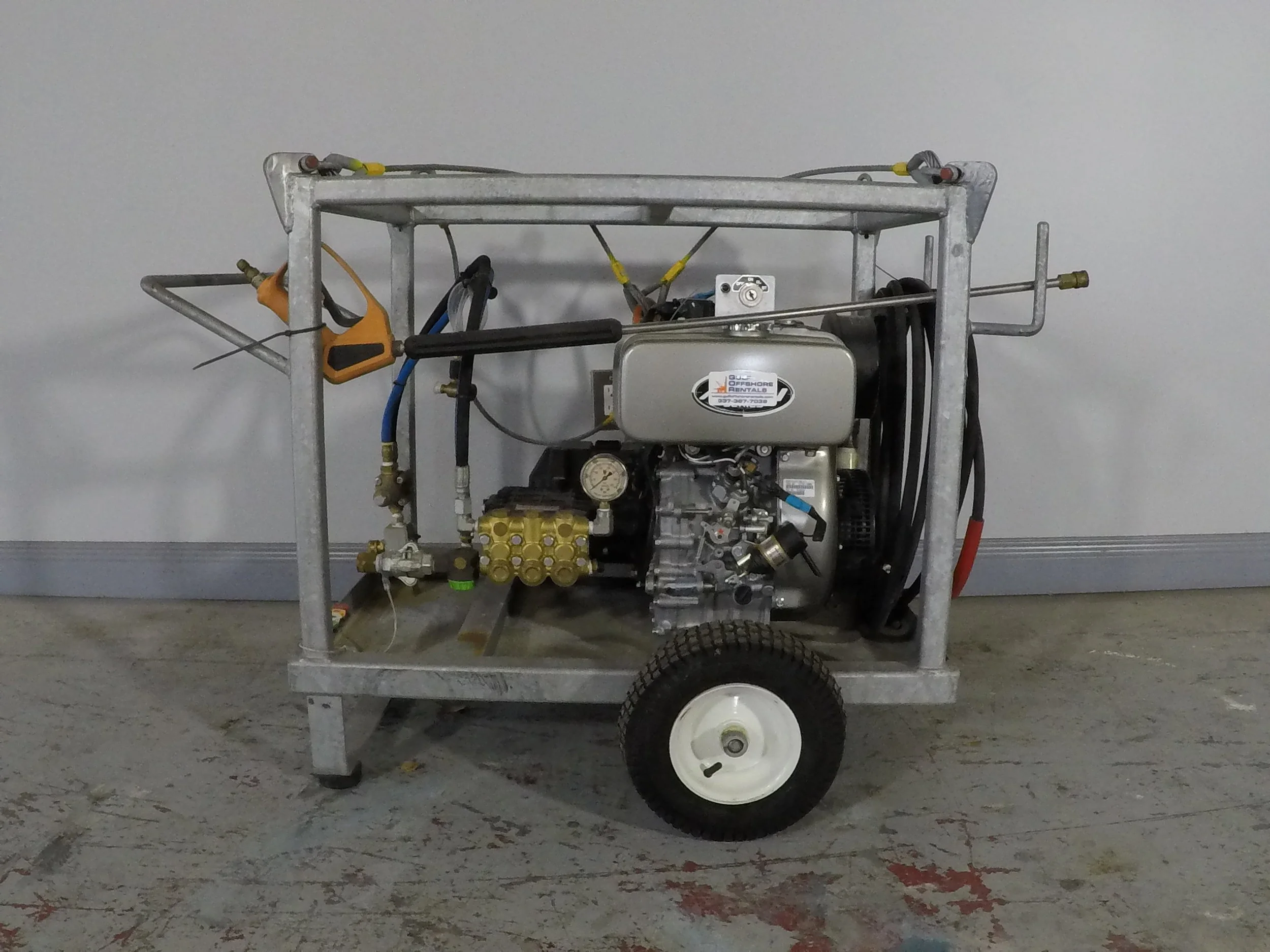

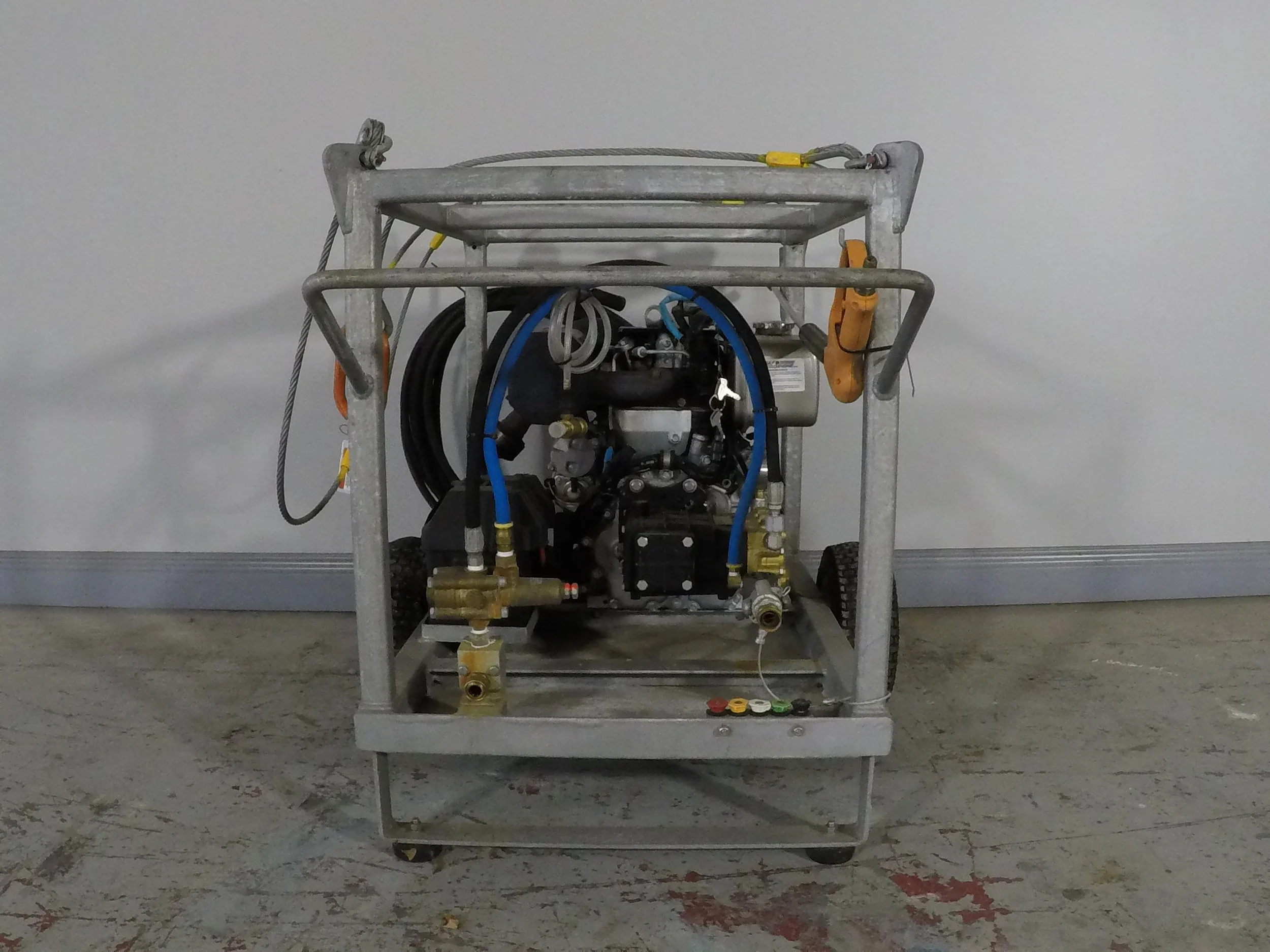

3,000 PSI PRESSURE WASHER

Description: Diesel Powered Cold Water Pressure Washer

Engine: Kubota Diesel Engine rated 6.0 hp @ 3600 rpm, Engine supplied standard

w/12 volt electric start, 12 volt battery w/ box and cables, key switch mounted

Pump: Triplex pump rated 3.0 gpm @ 3000 psi, direct drive, Inlet mesh filter, unloader

Skid: Structural Steel Type, Portable w/ 12” Pneumatic tires, Galvanized, Drip Pan, 4

Corner Lift, Vibration Isolators

Safety Features: Spark Arrestor, Manual Air Intake Shutdown, Thermo Pump Protector

Dimensions: L 39” x W 30” x H 30”

Weight: 450 lbs.

5,000 PSI PRESSURE WASHER

ENGINE: Kubota Diesel Engine Liquid Cooled (26 hp @ 3000 rpm)

PUMP: Triplex Pump, Direct Drive w/Gear Reduction (6 gpm @ 5000 psi)

SKID: Structural Steel all Welded and Galvanized w/Drip Pan, Forklift Pockets, 4 Corner Lift Eyes, Engine

Vibration Plate w/Vibration Isolators, Wand Rack, Hose Rack, 12 Gallon Aluminum Fuel Tank (Coast Guard

Approved), Electric Fuel Pump

CONTROLS: Weather Proof Instrument Box, w/High Temp/Low Oil Shutdown Switches, Key Switch,

Shielding Wiring Harness, (Optional Hour Meter, Optional Air Starter)

ACCESSORIES: Trap Pressure Unloader, Heavy Duty Trigger Gun w/Trigger Lock, 36” Lance Assy, 50ft

Discharge Hose w/QC’s, 5 Spray Nozzles, (Optional Turbo Nozzle), 10 Micron Inlet Water Filter, Crow Foot

Water Connection

SAFETY FEATURES: Spark Arrestor, Manual Air Intake Shutdown, Thermo Pump Protector, High Pressure

Relief Valve, Primary and Secondary Fuel Filters

DIMENSIONS: L 53” x W 33” x H 46”,

WEIGHT: 1,000 lbs.
